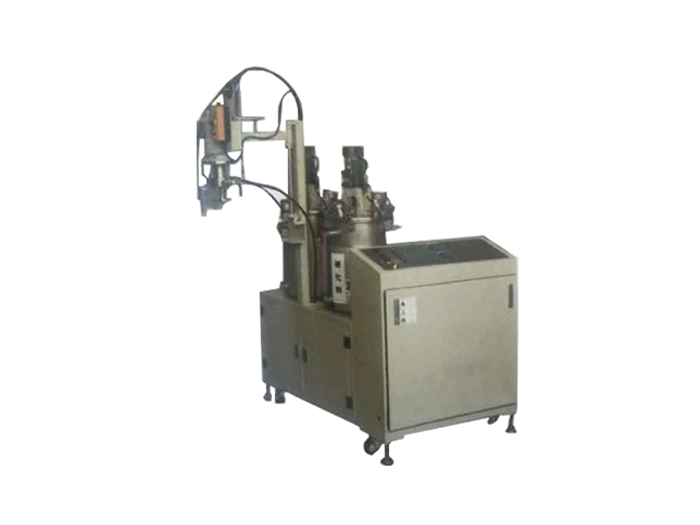

名称：小吐出量双液灌胶机
详细信息
1、采用不受材料液体粘度变化影响的容积计量式钢性载入泵，可进行 稳定高精度的计量吐出。
2、当胶水含有较硬的填料时，必须采用耐磨泵，保证长期使用不影响 吐出精度及比率。
3、选用动态混合时，采用新型混合器，多层搅拌桨强制混合，保证混 合均匀。
4、选用伺服驱动时，吐出量精度更高，而且吐出量和吐出速度可由触 摸屏直接设定，更适合多品种工件的高精度少量吐出，并预留信号 接口，可与机械手等自动化设备直接连接。
5、整体设备设计紧凑，使用操作简单方便。
1、The device uses a rigid load metering pump,using the volume measurement method.Measurement accuracy will not be the glue viscosity changes in the process and ensures accurate and spit accuracy.
2.We must use wear-resisting pump when the glue have a lot of hard additives. To ensure the long-term use does not affect the precision and the rate of spit.
3.the dynamic hybrid,using a new type of mixer，multiple impellers forced mixing,ensure uniform mixing
4.The servodrive, discharge amount of higher accuracy. and discharge amount and spit out the speed can be set by the touch screen directly.high precision and is more suitable for many varieties of workpiece micro spit.and reserve signal interface,can bedirectly connected with a mechanical hand and other automation equipment.
5. The whole equipment has the advantages of compact design.
|
设备型号(Modell |
RC-3050 |
|
计量方式(Measuring mode) |
活塞式计量泵(Volume Measurement of piston) |
|
吐出量精度(Discharge volume range) |
0.5ml-70mlshot |
|
出量精度(Output precision) |
<3% |
|
比率调整范围(Mixing ratio) |
100 :100-100:5 |
|
吐胶速度(Velocity of flow) |
3-10secfshot |
|
比率精度(Mixing precision) |
<3% |
|
原料粘度范围(Operation viscosity) |
1-150，000mpa.s高粘度时可通过加热来实现High viscosity can be achieved by heating) |
|
气源(Gas source) |
0.5-0.7mpa |
|
进料方式(Raw material supply) |
自动供料(真空吸引1)Automatic feedingVacuum suction) |
|
驱动方式(Driven mode) |
气缸驱动/伺服驱动(Cylinder driveliServo drive) |
|
混合方式(Mixed mode) |
静态混合/动态混合(Static mixing/Dynamic mixing) |
|
输入电源(Power) |
AC3BOV 5OHZ/2KW(不含真空泵Not including vacuum pump) |
|
控制方式(Operation mode) |
小型PLC控制(Small PLC contral) |
|
原料桶(Barrell |
2L-6OL(不锈钢制，可配,拌和加热装置SUS304,With stirring and heating device) |
|
吐出阀（Discharge valve) |
双液阀(Double valve)/FDV2 LWA-VR/FDV2-SWA-VT |
|
清洗方式（Cleaning mode) |
手动清洗/自动清洗(Manual cleaning/Automatic cleaning) |
|
外型尺寸(主机SizelThe main part) |
1200(L)×130O(WX165O(Hmm |
|
设备重量(Weight) |
约35OKG |
